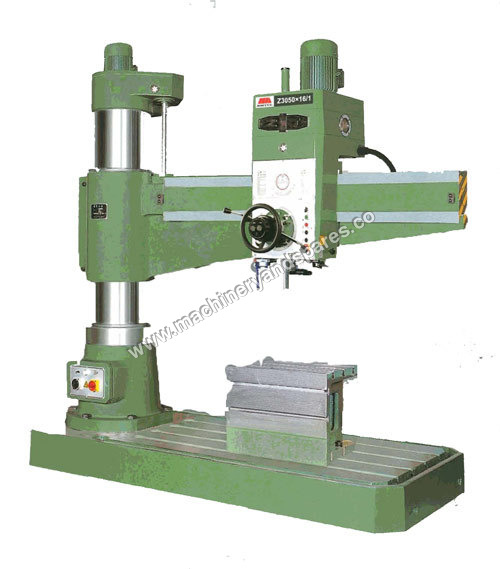

Drilling Machine

Drilling Machine
Drilling Machine
Product Code : 28
Brand Name : SIDDHAPURA
Product Description

With the aid of our knowledgeable workforce, we are able to manufacture, supply and export premium Drilling Machine. This product is widely used in various metal & steel industries for drilling. This equipment is also used at various construction sites for precision drilling. In compliance with the set industry standards, this machine is manufactured using contemporary equipment and cutting-edge technology. This Drilling Machine is widely recognized by our clients for being:

  • Durable
  • Abrasion resistance
  • Easy to operate
  • Corrosion resistance

Design Features :

  • Main Spindle Made From Alloy Steel With 6 Slots Is Machined By Hobber Machine And Mt-Bore Is Provided Internally Grinded By Internal Grinding Machine.
  • Provides 8 Speeds By Accurate Balanced Pairs Of Cone Pulleys, Which Runs On Two Ball Bearings
  • Spindle Sleeve Is Properly Grinded And Hardened Is Guided In Honned, Drill Head Bore Spindle Is Mounted On Five Ball & Roller Bearing For Smooth And Accurate Running
  • By Simple Adjustment Of Only Tapper Wedge Facility To Set Drill Head On Arm Guide Way
  • Top Cover Provided With Window For Changing Gears And Setting V-Belt For Desired R.P.M.
  • Lever Facility For V-Belt Tension Gears Made From Best Quality Material Are Helical Teethed On Imported Hobbing Machine For Smooth And Noiseless Running.
  • Piller & Other Parts Being Provided In Machine Are Ground And Finished By Wmw German Make Grinding Machine.
  • Gradations Are Provided On Protector For Swivelling Of Radial Arm To Required Degree.
  • Automatic Adjustable Depth Control.
  • Auto As Well As Manual Feeds.

STANDARD ACCESSORIES

  • Sahyog’ Make Model Ser-1/ 38 Mm Capacity Radial Drilling Machine, 8 Speed, 220 Mm Travel With Fine Feed Attachment.
  • Sahyog’ Make Model Ser-Ii/ 38 Mm Capacity Radial Drilling Machine, 8 Speed,220 Mm Travel With Auto Power Feed Attachment.
  • Siddhapura’ Make Model No. Ser-25 / Capacity Radial Drilling Machine 8 Speed, 185 Mm Travel With Hand Fine Feed Without Electricals & Box Table.
  • ‘Siddhapura’ Model Smt 40/1000 , 40 Mm All Geared Radial Drilling, 8 Speed, Single Column 175 Mm Travel, With Electricals. But W/O Box Table.
  • ‘Siddhapura’ Model Smt 40/1000 Dc, 40 Mm All Geared Radial Drilling, 8 Speeds, 175 Mm Travel Double Column, With Electricals. But W/O Box Table.

Preferred Accessories

  • Radial Drilling Machine of Sahyog Made with capacity of 38 mm and 220 mm speed with sturdy Feed Attachment.
  • Radial Drilling Machine, model no : li of Sahyog’ Make , with 38 mm capacity and 220 mm speed with Automatic-power Feed Attachment.
  • Radial Drilling Machine of Siddhapura’ Make, Model No : 25 with 185 mm speed with Hand Feed Attachment Without Electric fitting and Box Table.
  • All Geared Radial Drilling Machine of Siddhapura’ make, Model No : 40/1000 with 175 mm speed of Single Column and with Electrical fittings, but without Box Table.
  • All Geared Radial Drilling Machine of Siddhapura’ make, Model No : 40/1000 Dc, with 175 mm speed of Double Column, with Electrical fittings and without Box Table.

Provisional Accessories :

  • Electric Coolant Pump With Fittings and Tanks
  • Integrated with Machine Lamp
  • 2 Main Motors of HP Made
  • 0.5 Lifting Motor of HP Made
  • Reverse Switch & Belts
  • Box Table in the size of 380 X 300 X 300
  • 1 Main Motor of HP Make
  • 0.5 Lifting Motor of HP Make
  • Reverse / Forward Switch & Vee Belts
  • Box Table in the size of 510 X 380 X 355
  • Drill Chuck ranging from 0 to ½ with threaded arbor
  • Drill Chuck ranging from 0 to ¾ with threaded arbor
  • Drill Sleeve
  • Drill Vise

OPTIONAL ACCESSORIES

  • 2 Hp Main Motor
  • 0.5 Hp Lifting Motor
  • Rev Switch
  • Belts,Box Table. Size 380 X 300 X 300
  • 2 Hp Main Motor
  • 0.5 Hp Lifting Motor Rev Switch, Belts, Box Table
  • Size 380 X 300 X 300
  • 1 Hp Main Motor
  • 0.5 Hp Lifting Motor, Rev/R/F Switch (2 Nos) & Vee Belts,Box Table
  • Size 510 X 380 X 355/Box Table
  • Drill Chuck 0 – ½” With Arbour
  • Drill Chuck 0 – ¾” With Arbour
  • Drill Sleeve
  • Drill Vice – 100 Mm
  • Drill Vice – 150 Mm
  • lec. Coolant Pump With Tank & Fittings
  • Machine Lamp

Technical Details:

SPECIFICATIONS : SER - 2

CAPACITY

MS.

C.I.

Drilling Capacity

38mm

38mm

DRILL HEAD

Spindle nose


MT 4

Spindle Travel

mm.

220

No. of Spindle Speed


8

Range of Spindle speed

RPM

62-1980

Range of Power feed

mm/Rev.

(2) 0.08-0.04

POWER

H.P.

V-Belt

Main Motor

1.5

B-44

Arm Elevating Motor

0.5

A 23

WORKING TABLE

LxWxH

mm.

380x300x300

WORKING RANGE

Dialing Radius Max./Min.

mm.

895/ 440

Max. / Min. Distance Column to spindle

mm.

810 / 360

Maximum Drill Head Travel

mm.

450

Max. / Min. base Plate to Spindle

mm.

930 / 230

Diameler of Column

mm.

165

Swivel of arm L / R side


90°

BASE PLATE

LxWxH

mm.

760x1250x150

Working surface

mm.

820 x 610

No. of T-Slots

mm.

(4) 16

Overall Height

mm.

2000
