Lathe Machines

Lathe Machines
Lathe Machines
Product Code : 01(1350-1650 Series)
Product Description

Backed by our years of experience, we are engaged in manufacturing, supplying and exporting best quality Lathe Machines. This product is extensively used in wood turning, metal working, metal spinning, steel molding and flattening, parts reclamation & glass industries. Our offered equipment is made using latest machines and advanced technology at our unit. While making this product we use premium raw materials like metal and components which are obtained from the trusted vendors of the market. As per the specifications of our customers regarding delivery of our Lathe Machines, we adhere to quality packaging parameters including use of premium cartons for safe transit of the product at the specified destination.

Features:

  • Abrasion resistance
  • Longer service life
  • Stout construction
  • Easy operations

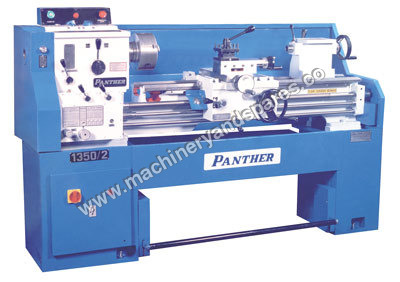

PANTHER Precision All Geared Lathes - 1350 & 1650 Series

"PANTHER" 1350 & 1650 SERIES ALL GEARED PRECISION LATHE MACHINE CONFIRMING TO STANDARD OF GRADE 1 ACCURACY

Specifications :

Lathe Bed Is Of Grade-20 Casting, Duly Flame Hardened & Ground With Brinell Hardness Over 300 Bhn Lathe Bed Is Of Grade-20 Casting, Duly Flame Hardened & Ground With Brinell Hardness Over 300 Bhn Headstock Spindle Of A2/4 Mounting Is Hardened And Ground And Runs In Anti Friction Taper Roller Bearings/ Drop Worm Arrangement For Instantaneous Engagement And Disengagement Of Power Feed Shear Pin Coupling As An Overload Safety Device For Lead Screw / Safety Clutch For Feed Overload Universal Gear Box Provides For Wide Range Of Inch / Mm Threads & Feeds/ Accuracy Is Tested As Per Is : 1878 (Part - 1) 1971

STANDARD ACCESSORIES:

  • Electric motor
  • R/f switch
  • 'V' belts, 2 mt. Centres with centre bush
  • Inch & mm gears
  • Oil can
  • Allen key set & instruction manual
  • Hardended guideways
  • Centre bush
  • Oil can
  • SST of allen keys and spanners
  • Screw driver and instruction manual

OPTIONAL ACCESSORIES:

  • D1-4, cam lock spindle in lieu of STD spindle
  • 16 spindle speeds ranging from 30 to 1250 rpm
  • 16 spindle speeds ranging from 50 to 2000 rpm with angular contact precision bearings
  • Starting third shaft with instanteous foot brake & control panel
  • Elec. Coolant pump with tank & fittings
  • Rear tool post with tool holder
  • D1-4 camlock spindle in lieu of A2/4spindle speeds ranging from 30 to 1250 RPM / 50 to 2000 rpm with super precision bearings

Technical Details:

MODEL 1350 / 1 1350 / 2 1650 / 1 1650 / 2
Height for Centres(MM)
177
177 215 215
Swing over Bed(MM)
335
335 410 410
Swing over Cross Slide(MM)
200
200 250 250
Dist. Between Centres
540
1000 1000 1500
Movement of Cross Slide(MM)
210
210 250 250
BED

Bed Type 2 Flat & 2V 2 Flat & 2V 2 Flat & 2V 2 Flat & 2V
Bed Width(MM) 230 230 265 265
MAIN SPINDLE





Type & Size of Spindle Nose A 2 Size 4 A 2 Size 4 A 2 Size 4 A 2 Size 4
Taper Bore in Center Sleeve(MT) 4 4 4 4
Spindle Bore(MM) 42 42 42 42
TAIL STOCK





Spindle Diameter(MM) 45 45 45 45
Taper Bore in Spindle Sleeve(MT) 4 4 4 4
SPEEDS

No. of Speeds 8 / 16 8 / 16 8 / 16 8 / 16
Range / RPM(MM) 45-938 / 30-1250 45-938 / 30-1250 45-938 / 30-1250 45-938 / 30-1250
ELECTRICALS





Main Motor(HP) 2 2 3 3
Power Supply 3 Phase 3 Phase 3 Phase 3 Phase
OTHER DATA

Gross Weight(KG) 1000 1000 1400 1550
FLOOR SPACE





Occupied (L x W)(MM) 2350 x 110 2800 x 1100 2800 x 1150 3350 x 1150
Packing Dimension(MM) 1750 x 1000 x 1300 2200 x 1000 x 1300 2200 x 1050 x 1350 2750 x 1050 x 1350
