Universal Nibbling Machine

Universal Nibbling Machine
Universal Nibbling Machine
Product Code : 37
Brand Name : PARADISE
Product Description

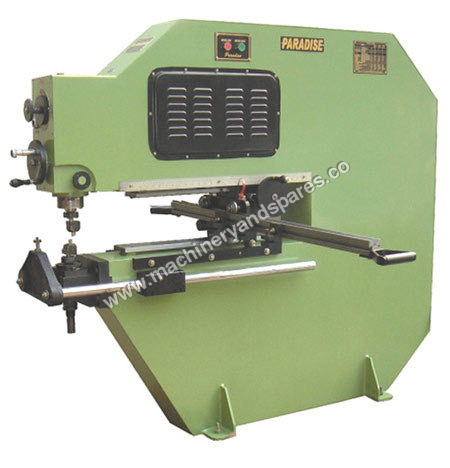

Our capabilities and industrial know how has enabled us to manufacture, supply and export Universal Nibbling Machine. Being a part of the PARADISE PN series, this machine has a rugged and sturdy construction. Owing to their multipurpose operations, these products facilitate the effective sheet cutting & forming applications. The nibbling operates on the hte sheet that needs to cut or formed by the means of fast reciprocating motion of an upper tool. Powered by an electric motor and driven by an eccentric crank, the stationery lower tool helps in progressive punching as the sheet is fed to the machine. Universal Nibbling Machine is available with us in different specifications as per the requirements of the clients.



Other details:

The PARADISE PN series Sheet Metal Nibbing Machine is a rugged, sturdy and reliable multipurpose machine capable of sheet cuting & forming operations. Its verstility is best expressed by terming it the Sheet Metal Workers lathe. The working principle on which nibbling operates is hte sheet is cut or formed between the fast reciprocating motion of an upper tool (powered by an electric motor and driven by an ecentric crank) and a stationery lower tool, by progressive punching, as the sheet is fed.

STANDARD ACCESSORIES
  • Holders with Figure Cutting Bits
  • Electric Motor with Push Button Starter Provided With Overload Trip
  • Set of Operation Keys and Spanners
  • Capacity Chart for Ms Sheet & Instruction Manual
  • Tow Slides for Attachment Mounding
  • Set of Tool Holdurs with Figure Cutting Bits
  • Electric Motor
  • Push Button Starter Provided With Over Load Trip
  • Set of Operating Keys
  • Set of Operating Spanners
OPTIONAL ACCESSORIES
  • Anti Vibration Pads
  • Hand Pushed Straight Feeding Attachment
  • Outside Circle Cutting Attachment
  • Nside Circle Cutting Attachment
  • Nibbling Tool
  • Louver Cutting Tool
  • Beading Tool
  • Rectangular Notching Tool
  • Flanging Tool
  • Slot Cutting Tool
  • Punching Tool
  • Folding Tool

Technical Specifications:



Model

PN-3

PN-5

PN-8


Capacities

M. Steel 45 kg./mm2

M. Steel 45 kg./mm2

M. Steel 45 kg./mm2

Straight Cutting

From the edge

mm

3.2

5

8

Inside with starting hole

mm

3.2

5

8

Sheet without starting hole

mm

2.5

4

6

Figure Cutting

Sheet thickness

mm

1.5

2

2.5

Louver Cutting

Sheet thickness

mm

2.25

3

4

Nibbling

From the edge

mm

2.5

4

6

Inside with starting hole

mm

2.5

4

6

Sheet without starting hole

mm

2

3

4

Slot Cutting

Sheet thickness/width of slot

mm

2.5/8

4/10

5/10

Rect Cutting

Sheet thickness/width of notch

mm

2.8

3/10

4/12

Folding

Sheet thickness/depth of fold

mm

2/6

2.5/8

3/10

Beading

Sheet thickness/depth of bead

mm

2/4

2.5/5

3/6

Flanging

Sheet thickness/height of flange

mm

2/8

3/12

3/15

Dishing

Sheet thickness

mm

2

2.5

3

Machine Specifications

Throal depth

mm

900

1000

1250

Minimum circle dia. Cut from square blanks

mm

740

830

1000

Net weight approximate

Kgs.

700

1600

2200

Length of stroke

mm

1 to 8

1.5 to 9

2 to 10

No. of strokes per minute

No.

1440

1440

720/1440

Maximum tool lift

mm

15

15

25

Motor 3 Phase

H.P.

2

3

5
